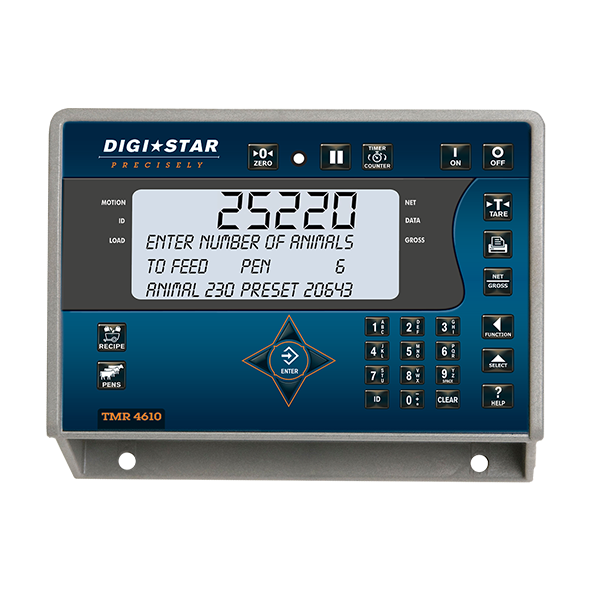

Digi-Star TMR4610

TMR4610

Preset Weight
The TMR4610 indicator provides simple to use and very useful Preset Weight feature. Using the numeric keypad, the operator can enter the desired weight of product that the operator wants to load or unload. Once loading or unloading begins the TMR4610 will count down to 0 (zero). As the weight approaches 0 the audio and visual alarms will begin to pulse with the frequency of the pulses increasing the closer the preset weight gets to 0. At 0 the alarm light and buzzer will sound continuously.

Rotation Counter / Timer
The Rotation Counter / Timer provides the useful benefit of monitoring mix revolutions or mix time and a warning light, buzzer, or external signal will indicate when the desired mix revolutions or time has been achieved. For this the TMR4610 uses an optional Rotation Counter Sensor (See Option Equipment Section: 17.0) which is fitted to the drive line of the feed mixer.

Maintenance Message
The Maintenance Message is available with the Machine Hour Meter function noted above and provides the ability for the equipment manufacturer or equipment owner to utilize the TMR4610 to display a specific Service or Maintenance message after a predetermined period of operation like a Change Oil message in an automobile.

Machine Hour Meter
The TMR4610 when fitted with the Rotation Counter Sensor can be configured to record hours of operation. The Machine Hour Meter can provide valuable information to aid the user in determining when maintenance and upkeep is required.

Three-line LCD Display White Back Light
A much brighter three-line LCD display to read in day light hours. With a bright white back light, the LCD can be seen at greater distances at night.

Log-In / Log-Out
This feature is designed for customers with more than one TMR4610 being used for feeding. The operator can log out of the current TMR4610 being used for feeding and all the feeding information will be saved on the USB. Then the operator can go and log in to a different TMR4610 and install the USB, this will load all the feeding information. This allows the operator to continue feeding from exactly where they left off.
